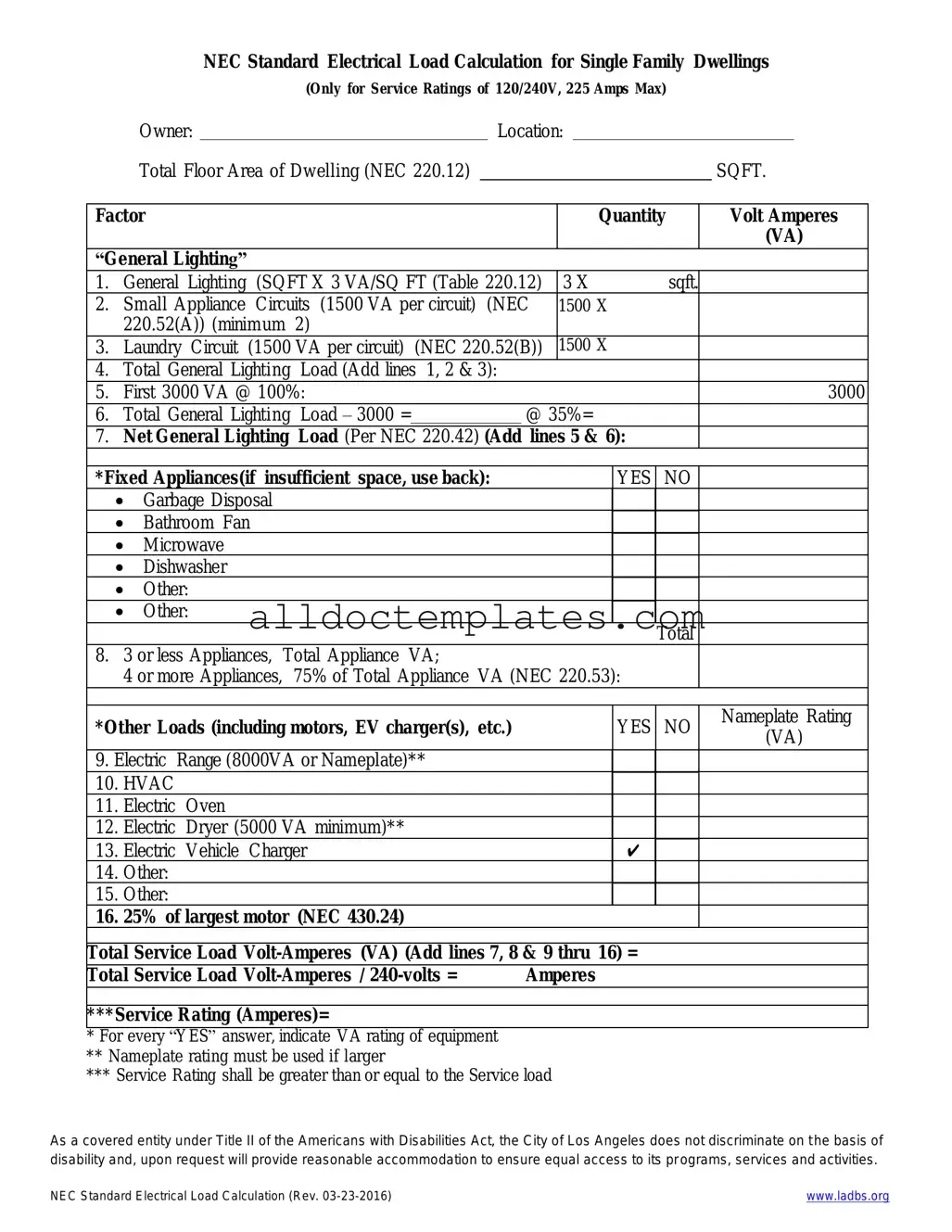

NEC Standard Electrical Load Calculation for Single Family Dwellings
(Only for Service Ratings of 120/240V, 225 Amps Max)
|
|
Owner: |
|
|
|
|
Location: |
|
|
|
|
|
|||||
|
|
Total Floor Area of Dwelling (NEC 220.12) |
|
|
|
|
|
|
|
|
|
SQFT. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Factor |
|
|
|
|
|
|
|
|
Quantity |
|
|
Volt Amperes |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(VA) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
“General Lighting” |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
1. |
General Lighting (SQFT X 3 VA/SQ FT (Table 220.12) |
3 X |
sqft. |
|
|
|
|||||||||||
2. |
Small Appliance Circuits (1500 VA per circuit) |
(NEC |
1500 X |
|
|
|
|
||||||||||
|
220.52(A)) (minimum 2) |
|
|
|
|
|
|
|
|
|
|
|
|||||
3. |
Laundry Circuit (1500 VA per circuit) (NEC 220.52(B)) |
1500 X |
|
|
|
|
|||||||||||
4. |
Total General Lighting Load (Add lines 1, 2 & 3): |
|
|
|
|
|
|
|
|
||||||||
5. |
First 3000 VA @ 100%: |
|
|
|
|
|
|
|
|
|
3000 |
||||||
6. |
Total General Lighting Load – 3000 = |
|
|
@ 35%= |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
||||||||||
7. |
Net General Lighting Load (Per NEC 220.42) (Add lines 5 & 6): |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
||||||||||
*Fixed Appliances(if insufficient space, use back): |
|
|
YES |
NO |
|
|
|
||||||||||
|
Garbage Disposal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Bathroom Fan |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Microwave |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Dishwasher |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Other: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Other: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
Total |
|
|
|
|
8. |
3 or less Appliances, |
Total Appliance VA; |
|
|
|
|
|
|
|
|
|
|
|
||||
|
4 or more Appliances, |
75% of Total Appliance VA (NEC 220.53): |
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Other Loads (including motors, EV charger(s), etc.) |
|
|
YES |
NO |
|
Nameplate Rating |
|||||||||||
|
|
|
(VA) |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
9. Electric |
Range (8000VA or Nameplate)** |
|
|
|
|
|
|
|
|
|
|
|
|||||
10. HVAC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
11. |
Electric |
Oven |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
12. |
Electric |
Dryer (5000 VA minimum)** |
|
|
|
|
|
|
|
|
|
|
|
||||
13. |
Electric |
Vehicle Charger |
|
|
|
|
|
✔ |
|
|
|
|
|
||||
14. |
Other: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15. |
Other: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16. |
25% of largest motor (NEC 430.24) |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|||||||||||||
Total Service Load |
|
|
|
|
|||||||||||||
Total Service Load |
|
|
Amperes |
|
|
|
|
||||||||||
***Service Rating (Amperes)=
*For every “YES” answer, indicate VA rating of equipment
**Nameplate rating must be used if larger
***Service Rating shall be greater than or equal to the Service load
As a covered entity under Title II of the Americans with Disabilities Act, the City of Los Angeles does not discriminate on t he basis of disability and, upon request will provide reasonable accommodation to ensure equal access to its programs, services and activities.
NEC Standard Electrical Load Calculation (Rev. |
www.ladbs.org |
Document Information
| Fact Name | Description |
|---|---|
| Purpose | The LADBS NEC Standard Electrical Load Calculation form is used to determine the electrical load requirements for a building or structure. |
| Compliance | This form ensures compliance with the National Electrical Code (NEC) and local regulations in Los Angeles. |
| Required Information | Users must provide details such as the type of occupancy, square footage, and number of electrical devices. |
| Load Types | The form calculates various load types, including lighting, receptacle, and appliance loads. |
| Submission | The completed form must be submitted to the Los Angeles Department of Building and Safety (LADBS) for review. |
| Governing Laws | The form adheres to California state laws and local amendments to the NEC. |
| Calculation Method | Load calculations can be performed using both manual methods and software tools approved by LADBS. |
| Review Process | After submission, LADBS reviews the calculations to ensure they meet safety and regulatory standards. |
| Revisions | If discrepancies are found, applicants may need to revise and resubmit the form. |
| Importance | Accurate load calculations are critical for ensuring the safety and efficiency of electrical systems in buildings. |
LADBS NEC Standard Electrical Load Calculation - Usage Guidelines
Completing the LADBS NEC Standard Electrical Load Calculation form is a crucial step in ensuring that your electrical installation meets safety and performance standards. Properly filling out this form helps in assessing the electrical load requirements for a project, ensuring compliance with local regulations. Below are the steps to guide you through the process of completing the form accurately.
- Begin by gathering all necessary information about the project, including the type of occupancy, square footage, and any specific electrical appliances or systems that will be installed.
- Locate the section of the form that requires the address of the project site. Fill in the complete address, including city, state, and zip code.
- Identify the type of occupancy for your project. This may include residential, commercial, or industrial. Select the appropriate option on the form.
- Calculate the total square footage of the area that will be serviced by the electrical system. Record this number in the designated space on the form.
- List all major electrical appliances and systems that will be used in the project. This includes heating and cooling systems, lighting, and any other significant electrical loads.
- Refer to the NEC (National Electrical Code) guidelines to determine the load calculations for each appliance or system listed. Use the appropriate formulas to calculate the total load.
- Sum all calculated loads to arrive at the total electrical load for the project. Enter this total in the specified section of the form.
- Review all entries for accuracy. Ensure that all calculations are correct and that all required fields are filled out completely.
- Once verified, sign and date the form in the designated area to certify that the information provided is accurate to the best of your knowledge.
- Submit the completed form to the appropriate local authority or agency as per the submission guidelines provided.
